Groundcell ground control
system defends against
erosion and protects tree roots

Erosion control and root protection ground control system

Beauxfort’s Groundcell ground control system prevents erosion on slopes, gradients and embankments, reinforcing and stabilising the soil, while allowing grass to grow. Groundcell can also be used beneath access roads and driveways to protect tree roots against the heavy load of vehicles and provide a solid and stable base for the surface.

When installed beneath Beauxfort’s Gravelrings, Groundcell ground control system provides an extra layer of stability that defends against potential tree damage by giving vital protection to their roots. Gravelrings can be installed above Groundcell, providing yet more stability and longevity to a gravel driveway.

Ideal For

Driveways

Embankments

Roads

How Groundcell works

Groundcell is widely used for ground erosion prevention on slopes and embankments to protect, reinforce and stabilise the soil and promote growth. It is also used extensively for tree root ...

Learn More

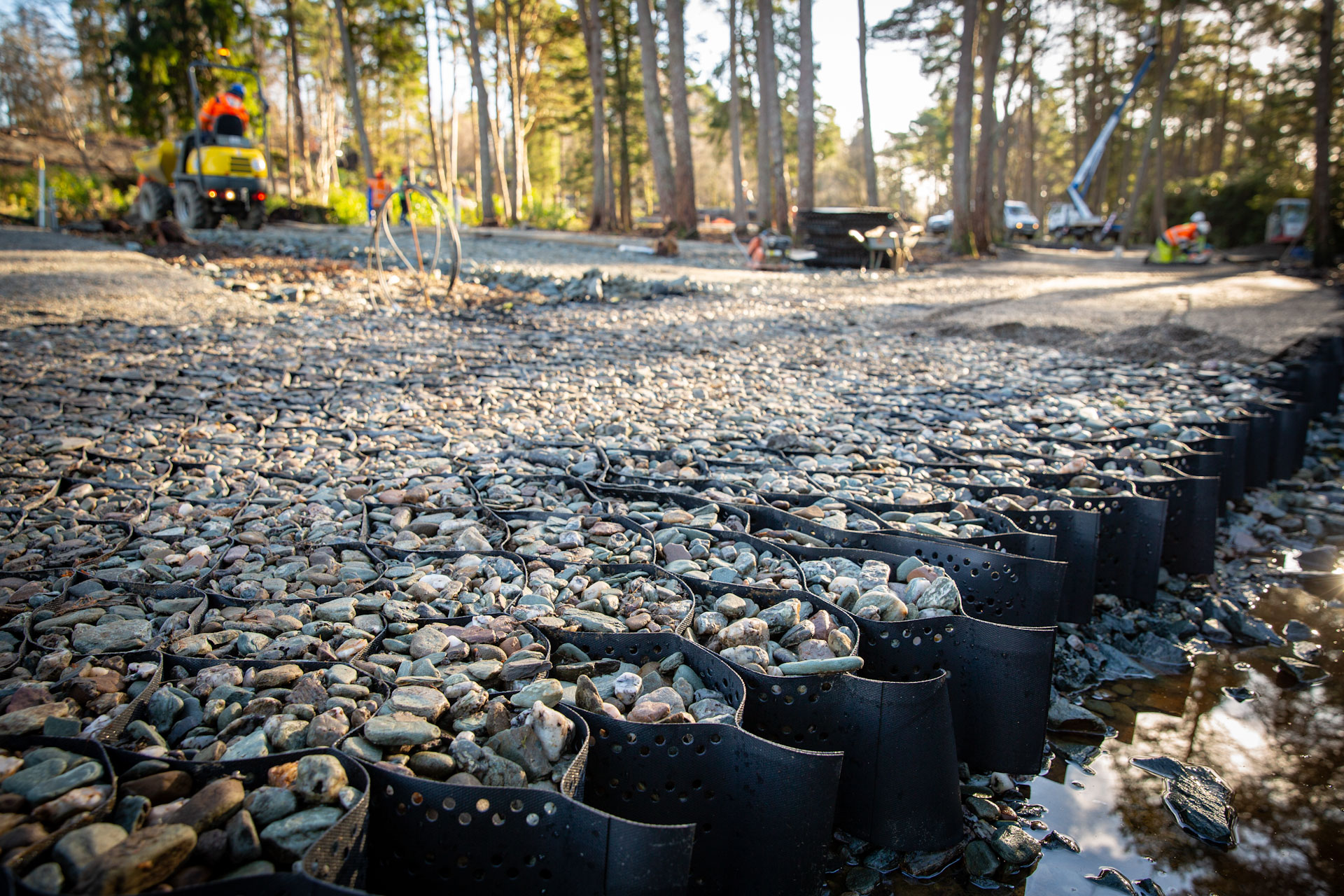

Ground control system for tree root protection

Beauxfort’s Groundcell tree root protection system can be installed beneath access roads and driveways to protect tree roots from being damaged or compacted by the weight of vehicles travelling ...

Learn More

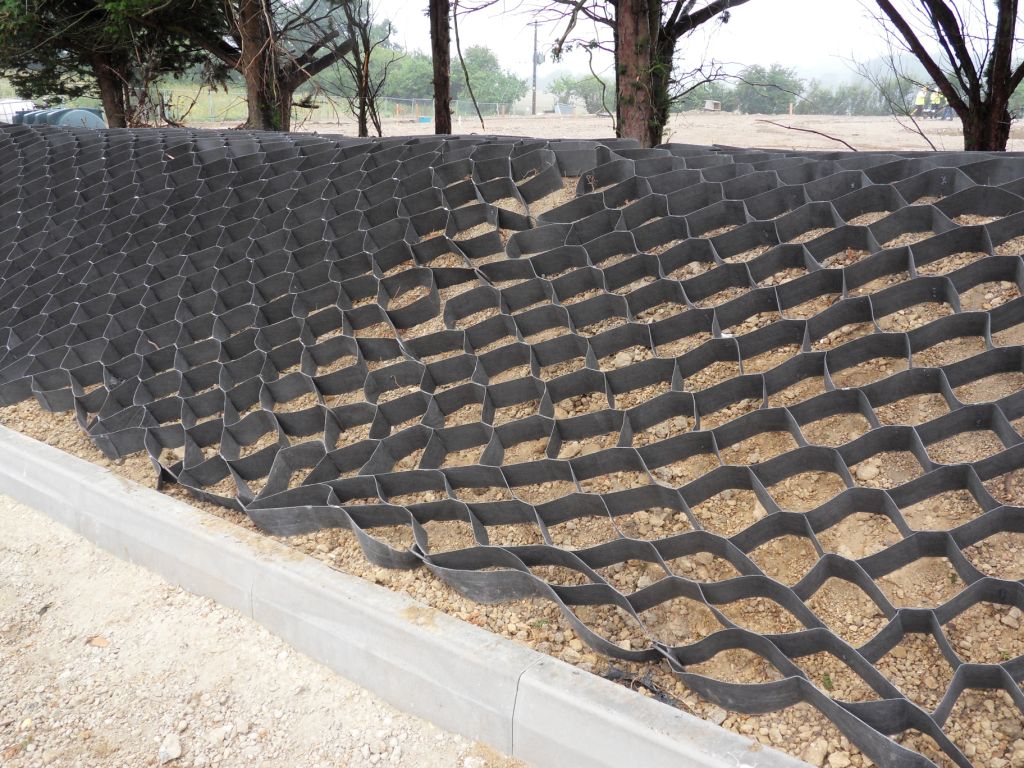

Erosion control system for slopes, gradients and embankments

Beauxfort’s Groundcell erosion control system prevents erosion on slopes, gradients and embankments, reinforcing and stabilising the soil, protecting against irregular settlement and rain washout, while allowing grass to grow. <...

Learn More

Technical
information

Raw Material

HDPE

Colour

Black

Cell Wall Type

Texture & Perforated

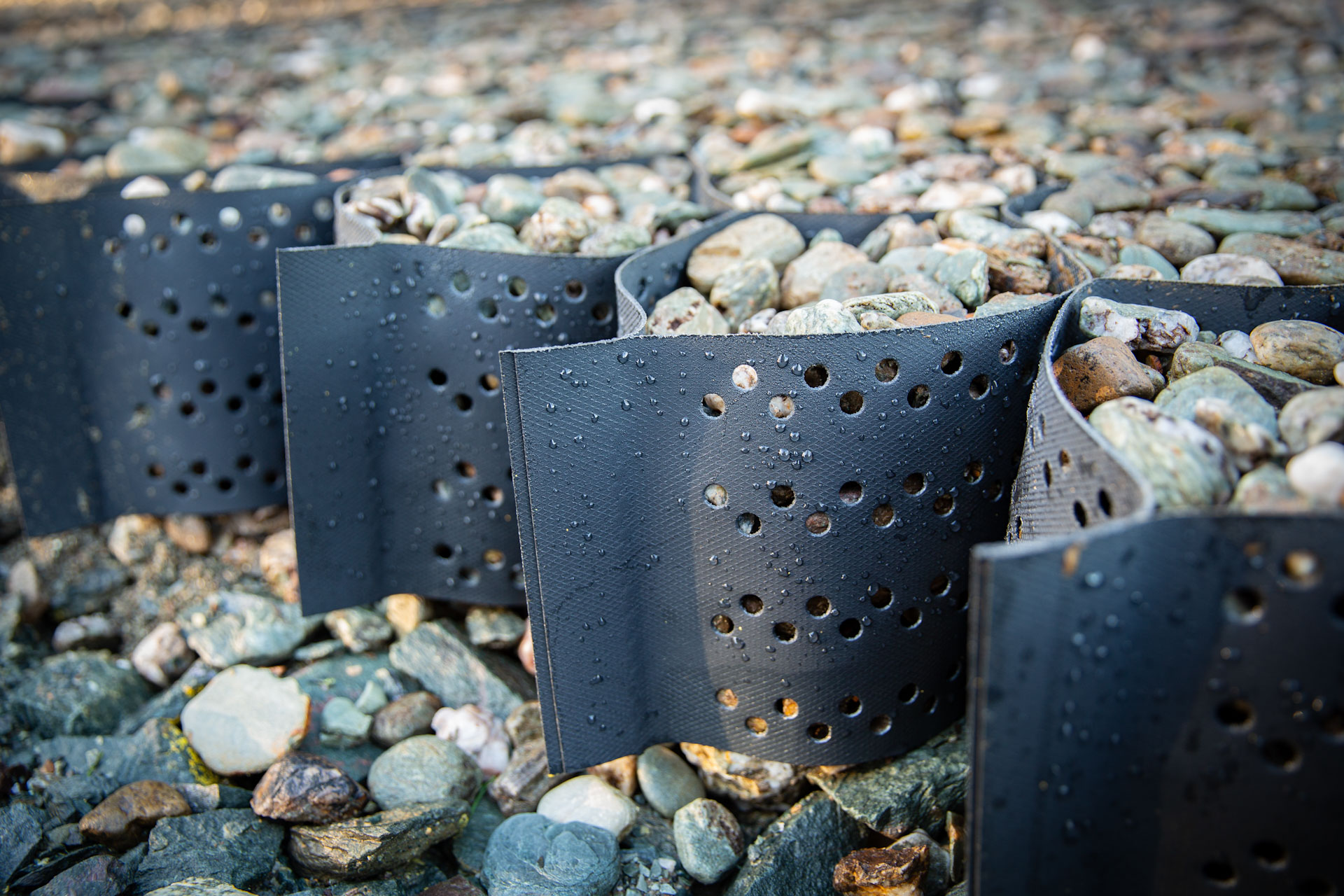

Cell Wall Thickness

1.20mm (tolerance of +/-0.2mm)

Cell Height

100mm 150mm 200mm tolerance of +/-2%)

Cell Size

300mm (tolerance of +/-2%)

Standard Panel Size

4 x 6m* (tolerance of +/-2%) Panel size may vary, please contact the sales team to confirm.

Standard Panel Area

24m² (tolerance of +/-2%)

Seam Tensile Strength

1800 N

Durability & Oxidation Resistance

Predicted to be durable for a minimum of 25 years in natural soils with 4 < pH < 9 and temperatures < 250C. Product has been successfully tested for resistance to oxidation in accordance with PN-EN ISO 13438, PN-EN ISO 527-3.
